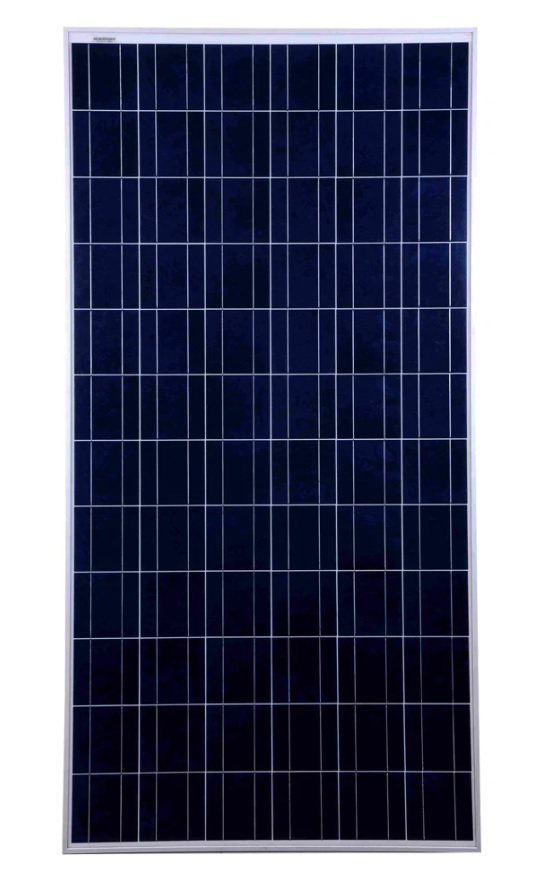

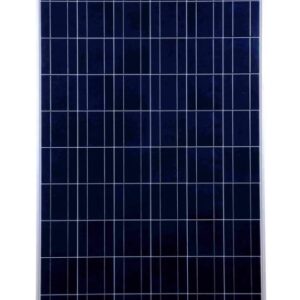

These High Performance Poly-Crystalline Cells are designed for on-grid as well as off-grid applications.
Key Features
- Made in India.
- Positive Power tolerance.
- PID resistant
- Highly reliable Anti-reflective coated glass.
- Wind speed: 2400 Pa.
- Snow load: 5400 Pa.
- IP67 Junction Box.
Technical Specifications
- Electrical characteristics
- Rated Power, Pmax (Wp) – 275W.
- Voltage at Maximum power, Vmp (V) – 31.16V
- Current at Maximum power, Imp (A) – 8.84A.
- Open circuit voltage, Voc (V) – 38.97V.
- Short Circuit current, lsc (A) – 9.14V.
- Module Efficiency (%) – 16.63%.
Physical Parameters
- Module dimension : 1641mm x 987mm x 35 / 40mm.
- Weight : 18Kg.
- Cells : 60.
- Solar cell Type: Poly-crystalline cells.
- Front Cover: 3.2mm Thick Low iron tempered glass.
- Frame Material: Silver Anodized Aluminium Alloy.
- Junction Box: 4 Rail.
Cell Temperature Coefficients
- Open Circuit Voltage : – 0.33%/°C.
- Short Circuit Current : + 0.06%/°C.
- Nominal Power : – 0.40%/°C.
Operating Conditions
- Ambient Temperature : -40 to +85.
- Maximum System Voltage (Vdc): 1000.
- Hail Impact Velocity M/sec: 23.
- Snow Load Factor Pascals : 5400.
Warranty
- Product Warranty : 10 Years.
- Power Warranty: 25 Years (90% of minimum rated till end of first 10 years, 80% of minimum rated till end of next 15 years).
Please note that panel dimensions and specifications are subject to change. Please double check with us that they are correct at time of purchase.
Important: All solar products their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Zebra Solar Gear will not be held liable for any product malfunctions as a result of incorrectly installed systems.
